Battery
Capacity3100 mAh
Wireless ChargingYes
Wireless Charging StandardsWPC, PMA, Qi, Fast Wireless Charging 2.0, Wireless PowerShare
Talk Time1860 minutes
Run Time DetailsTalk (CDMA): up to 1860 min Active online usage (Wi-Fi): up to 14 hrs Active online usage (3G): up to 12 hrs Active online usage (LTE): up to 14 hrs Playback (audio): up to 90 hrs Playback (video): up to 19 hrs
Cellular
TechnologyCDMA2000 1X / GSM / WCDMA (UMTS) / TD-SCDMA
Mobile Broadband Generation4G
Service ProviderVerizon Wireless
Operating SystemAndroid 9.0 Pie
Intelligent AssistantBixby
NavigationGPS, GLONASS, Galileo
SIM Card TypeNano SIM
SIM Card Slot QtySingle-SIM
Payment TechnologySamsung Pay
Input DeviceMulti-touch, capacitive
Communications
Data TransmissionGPRS, EDGE, HSDPA, HSUPA, HSPA+, FDD-LTE, TDD-LTE, LAA
2G BandGSM 850/900/1800/1900 / CDMA2000 1X 1900/800 / TD-SCDMA 1880/2010
3G UMTS BandBand 1, Band 2, Band 5, Band 8
3G UMTS Frequency2100, 1900, 850, 900
4G LTE BandBand 2, Band 3, Band 4, Band 5, Band 7, Band 8, Band 13, Band 18, Band 19, Band 20, Band 26, Band 28, Band 38, Band 39, Band 40, Band 41, Band 66
4G LTE FrequencyFDD 1900 PCS, FDD 1800+, FDD 1700 - 2110 AWS, FDD 850, FDD 2600, FDD 900, FDD 700c, FDD 800 lower, FDD 800 upper, FDD 800 DD, FDD 850+, FDD 700 APT, TDD 2600, TDD 1900, TDD 2300, TDD 2500, FDD 1700 - 2110 AWS-3
Wireless InterfaceNFC, Bluetooth 5.0 LE, ANT+/ANT, IEEE 802.11a/b/g/n/ac/ax
Connections
Connector TypeUSB Type-C - 24 pin USB-C Headset jack - mini-phone 3.5 mm
Display
TypeOLED display
TechnologyInfinity-O Dynamic AMOLED
Diagonal Size5.8"
Display Resolution2280 x 1080 pixels
Display FormatFull HD+
Pixel Density438 ppi
Color Depth16.7 million colors
HDRYes
FeaturesHDR10+, AOD(Always On Display)
Environmental Parameters
Max Depth of Water Resistance5 ft
Front Camera
Sensor Resolution10 Megapixel
Lens ApertureF/1.9
Field of View (FoV)80 degrees
Pixel Size1.22 µm
Camera ModesLive Focus mode
FeaturesDual Pixel AF
General

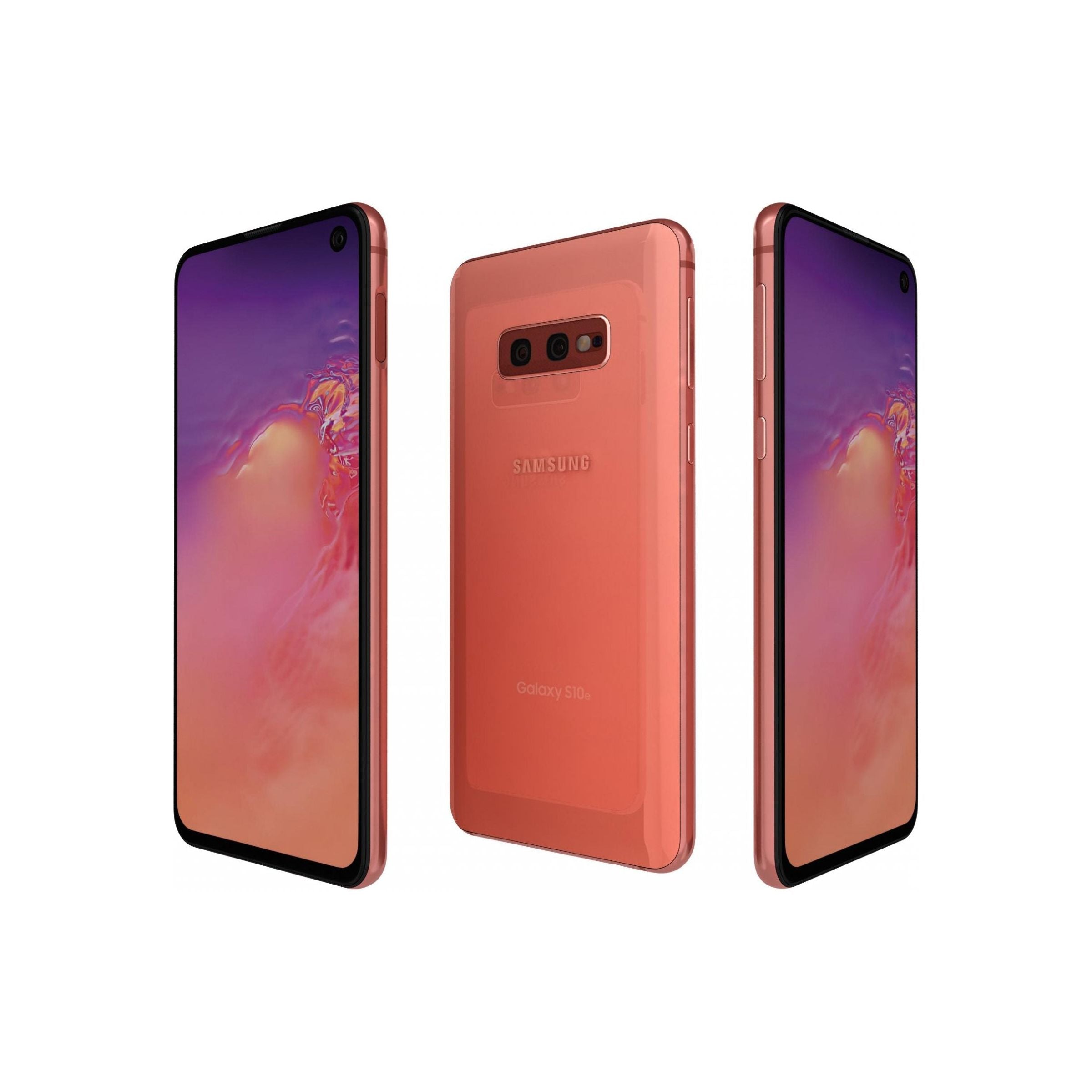

Product TypeSmartphone
Manufacturer Model NumberSM-G970U
Form FactorTouch
ProtectionDustproof, waterproof
Integrated ComponentsFront-facing camera, voice recorder, stereo speakers, navigation, dual rear-facing camera, digital player
Width2.8 in
Depth0.3 in
Height5.6 in
Weight5.29 oz
Body ColorFlamingo pink
SAR Value1.59 W/kg (simultaneous), 0.92 W/kg (body) / 0.68 W/kg (head), 1.36 W/kg (wireless router)
Media Player
Supported Digital Audio StandardsWAV, WMA, AAC, AMR, MP3, FLAC, XMF, OGG, MIDI, APE (Monkey's Audio), M4A, DSF, DSD, MXMF, OGA, 3GA, AWB, IMY, RTTTL, RTX, OTA, DFF, MID
Supported Digital Video StandardsMKV, FLV, AVI, MPEG-4, WMV, ASF, 3GP, M4V, WebM, 3G2
Sound EnhancementsDolby Digital Plus sound, Dolby Atmos sound technology, Surround sound, Dolby Digital sound
Memory
RAM8 GB - LPDDR4X SDRAM
Internal Memory Capacity256 GB
User Memory225.1 GB
Supported Flash Memory CardsmicroSDHC, microSDXC - up to 512 GB
Messaging & Internet
Messaging ServicesSMS, MMS
Supported Social Networks and BlogsYes
Miscellaneous
Compliant StandardsIP68
Included AccessoriesPower adapter, SIM card removal tool, USB-C cable, screen protector (pre-applied), headset (tuned by AKG), USB connector (OTG)
Phone Features
Phone FunctionsSpeakerphone, voice control, call timer, conference call, flight mode, voice dialing, vibrating alert
SensorsAccelerometer, proximity sensor, barometer, gyro sensor, hall sensor, RGB sensor, pressure sensor, geomagnetic sensor
Security DevicesFingerprint reader, face recognition
Additional FeaturesMU-MIMO technology, Samsung KNOX, Live message, Bixby Vision
Processor
TypeQualcomm Snapdragon 855
Clock Speed2.8 GHz
Processor Core Qty8-core
64-bit ArchitectureYes
Rear Camera
Lens TypeWide-angle lens
Focus AdjustmentAutomatic
Sensor Resolution12 Megapixel
Optical Image StabilizerOptical Image Stabilizer (OIS)
Lens ApertureF/1.5 & f/2.4
Field of View (FoV)77 degrees
Pixel Size1.4 µm
Digital Zoom10
Self-Timer DelayYes
Special EffectsHDR, Grid Line, Motion photos
Camera ModesPanorama, Slow motion mode, Pro mode, HYPERLAPSE, Super Slow-mo, AR Emoji, Flowers, Greenery, Trees, Sky, Mountains, Beaches, Watersides, Snow, Backlit, Text, Food, Live focus with bokeh effect, Face, Baby, Person, Dog, Cat, People, Sunset, Sunrise, City, Waterfall, Scenery, Stage, Vehicles, Drinks, Animal, Shoes, Indoor, Clothes, Night view
Face DetectionFace detection
Light SourceHigh CRI LED flash
Video Resolutions1920 x 1080 (1080p) at 60 fps, 1280 x 720 (720p) at 30 fps, 3840 x 2160 (4K) at 60 fps, Super slow motion video 1280 x 720 (720p) at 960 fps, Slo-mo video 1920 x 1080 (1080p) at 240 fps
FeaturesVDIS (Video Digital Image Stabilization), Dual Pixel Autofocus technology, Scene Optimizer, Flaw detection
Second Rear Camera
Sensor Resolution16 Megapixel
Lens TypeUltra wide-angle lens
Lens ApertureF/2.2
Pixel Size1 µm
Universal Product Identifiers
BrandSamsung
Part NumbersSM-G970U, SMG970UZIEV
GTIN00887276328171
